Can’t Load the Arnold Plugin in Maya? The Ultimate Fix Guide

If Maya suddenly refuses to load the Arnold plugin, you're facing a workflow interruption that needs quick resolution. Whether the Arnold tab is missing, the plugin fails to initialize, or you see an error message about missing modules—the cause is typically technical and fixable.

This guide walks you through verified solutions based on Autodesk and Solid Angle documentation, plus practical steps used in production environments.

Root Causes and Diagnosis

Before applying fixes, understand why Arnold might fail to load. Common causes include missing installation files, corrupted modules, or hardware incompatibility.

Missing or Misplaced Module File (mtoa.mod)

Arnold registers itself in Maya through a module file named mtoa.mod. If this file is missing or in the wrong folder, the plugin won't appear in Maya's Plug-in Manager.

Typical location: C:\Users\<User_Name>\Documents\maya\<version>\modules

For shared or studio setups, move mtoa.mod to a central path such as: C:\Program Files\Common Files\Autodesk Shared\Modules\Maya\<version>

Figure 1: Maya Plugin Manager showing MtoA loaded

Incorrect or Missing Environment Variables

If Maya can't locate the plugin files, check your environment variables. Ensure the ARNOLD_PLUGIN_PATH variable points to the MtoA plugin directory:

setx ARNOLD_PLUGIN_PATH "C:\\solidangle\\mtoa\\plug-ins" /M

You can also define MAYA_MODULE_PATH if you're working in a shared or multi-user environment.

Figure 2: Environment Variables window showing ARNOLD_PLUGIN_PATH

Broken Python Dependencies

If the plugin is visible in the manager but fails to initialize, the Python path may not be set correctly. Add the MtoA scripts folder manually:

setx PYTHONPATH "C:\\solidangle\\mtoadeploy\\<version>\\scripts"

This ensures Maya can find the scripts required for Arnold to launch properly.

Version Mismatch or Missing DLL Files

A mismatch between Maya and MtoA versions often triggers the error:

Unable to dynamically load : mtoa.mll. The specified module could not be found.

The fix is simple: reinstall the exact version of MtoA that matches your Maya release. For example, use MtoA 5.3.x for Maya 2024. Also verify that ai.dll exists inside the MtoA bin folder.

CPU or Hardware Limitations

Arnold requires CPU instruction sets such as SSE 4.1 or newer. If your workstation uses an older processor, Arnold won't load or may crash immediately. Check CPU compatibility using tools like CPU-Z or system info commands.

Third-Party Plugin Conflicts

Conflicts between plugins—like Houdini Engine or others—can cause Arnold to fail. Disable other render or simulation plugins temporarily and re-enable MtoA first. If Maya loads successfully afterward, adjust the plugin load order permanently.

Step-by-Step Fix Workflow

Follow these verified steps to restore Arnold in Maya.

Step 1: Verify CPU Instruction Support

Run a quick system check to ensure your CPU supports SSE 4.1:

wmic cpu get Name,DataWidth

If your CPU doesn't meet requirements, Arnold cannot operate correctly.

Step 2: Reinstall the Matching MtoA Version

Uninstall the existing MtoA plugin. Download the version corresponding exactly to your Maya build from the official Arnold downloads page. During installation, temporarily disable antivirus software to avoid DLL blocking.

Step 3: Set the Correct Environment Variables

Add or correct these variables to ensure Maya finds Arnold components:

setx ARNOLD_PLUGIN_PATH "C:\\solidangle\\mtoa\\plug-ins" /M
setx MAYA_MODULE_PATH "C:\\Program Files\\Common Files\\Autodesk Shared\\Modules\\Maya\\<version>" /M

Step 4: Reset Maya Preferences

Corrupted user preferences often prevent plugins from loading. To reset:

1. Close Maya.
2. Navigate to Documents\maya\<version>\prefs.
3. Rename the folder to prefsOld.
4. Restart Maya.

Step 5: Enable the Plugin Manually

Inside Maya, go to: Windows > Settings/Preferences > Plug-in Manager. Locate mtoa.mll and check both "Loaded" and "Auto load."

Step 6: Verify GPU and OptiX Driver Compatibility

If Arnold loads but GPU rendering fails, the issue usually lies in driver compatibility. Arnold GPU rendering requires NVIDIA driver version 472.12 or newer (Studio Driver recommended).

To verify:

1. Press Windows + R → type msinfo32.
2. Check under Components > Display for your driver version.
3. Update to the latest NVIDIA Studio Driver if outdated.

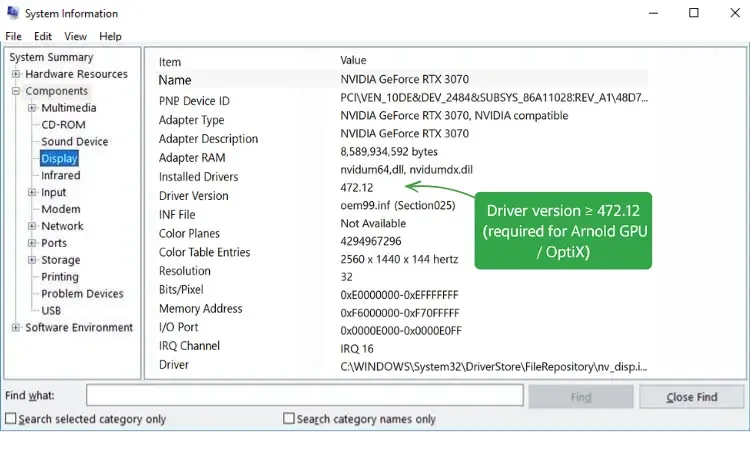

Figure 3: NVIDIA driver version displayed in msinfo32

Step 7: Fix License and Watermark Issues

If you see a watermark or "no license" message, reconfigure licensing:

• Open Arnold License Manager inside Maya.
• Switch to Single-User mode and sign in with your Autodesk ID.
• Clear any existing ADSKFLEX_LICENSE_FILE environment variable.

For network licenses, verify server access or firewall rules. To confirm license validity, use the Arnold command-line tool:

kick -licensecheck

Figure 4: Arnold License Manager showing license status

Step 8: Enable Diagnostic Logging

For a comprehensive overview of how Maya.env files work — including syntax, platform-specific paths, and common variable assignments — see our guide on setting environment variables using Maya.env.

For persistent crashes, enable verbose startup logs. Add the following line to your Maya.env file:

MTOA_STARTUP_LOG_VERBOSITY = 3

This produces detailed logs that can help pinpoint missing dependencies or module errors.

GPU Rendering and Hardware Stability

GPU rendering can fail for several reasons unrelated to the main plugin. Here's how to handle them effectively:

Licensing and Authorization Issues

Arnold supports both Single-User (Autodesk ID) and Network licensing. If the plugin loads but rendering displays a watermark, it's almost always a license configuration issue.

Key fixes:

• Verify Autodesk ID sign-in in Arnold License Manager.
• For network setups, confirm the RLM or Autodesk network server is reachable.
• Check %LOCALAPPDATA%\Autodesk\Logs for detailed license logs.
• Run kick -licensecheck to test direct license server access.

Prevention and Maintenance Tips

Maintaining a stable Arnold installation requires good practices:

• Always match Arnold and Maya versions.
• Store mtoa.mod in a shared module path if multiple users share a workstation.
• Keep your GPU drivers and Visual C++ redistributables updated.
• Avoid mixing old environment variable entries from previous installations.
• After Maya updates, test Arnold before starting production.
• Keep MTOA_STARTUP_LOG_VERBOSITY = 3 active for future debugging.

Frequently Asked Questions

Q: Why is the Arnold plugin not showing up in Maya?

A: The module file mtoa.mod is missing or misplaced. Ensure it's located in the correct modules directory or defined via MAYA_MODULE_PATH.

Q: How do I manually load the Arnold plugin in Maya?

A: Open the Plug-in Manager, find mtoa.mll, and enable both "Loaded" and "Auto load." If it's missing, reinstall MtoA and verify environment paths.

Q: What causes Arnold to fail to initialize or crash?

A: Common causes include mismatched versions, missing DLLs, or incorrect Python dependencies. Reinstalling MtoA and resetting preferences usually fixes it.

Q: How do I fix the Arnold license error or watermark issue?

A: Use the Arnold License Manager to switch to Autodesk ID licensing or verify your network license settings. Run kick -licensecheck for confirmation.

Q: How do I check if my system supports Arnold GPU rendering?

A: Ensure you're using an NVIDIA GPU (Maxwell or newer) and driver version 472.12 or higher. Use msinfo32 to confirm the current driver.

Q: How can I prevent Arnold from failing again after updates?

A: After updating Maya or Arnold, reset preferences, verify module paths, and test plugin loading before opening production scenes.
