Fix Arnold Camera Missing from RenderView in Maya

The Missing Camera Problem in Arnold

One of the most frustrating issues when setting up Arnold rendering in Maya is creating or selecting a camera, only to find it's missing from the Arnold RenderView camera dropdown. You create a new camera, set it as the render camera, but when you switch to Arnold and open the RenderView, the camera list is empty or shows only the default camera. Or worse: you can render from the viewport, but batch submissions to our farm fail because the batch render tool can't find the camera.

Arnold RenderView in Maya showing the camera dropdown with available cameras listed

We've debugged this countless times on render farm submissions. The issue isn't usually Arnold itself—it's almost always a Maya camera configuration problem. The good news is that the fixes are straightforward and reproducible. This guide covers the most common causes and solutions.

Understanding How Arnold Finds Cameras in Maya

Arnold doesn't automatically detect all cameras in a Maya scene. Instead, it looks for cameras that meet specific criteria:

1. The camera must be a valid Maya camera node (not a group or other object labeled as a camera).
2. The camera must have render flags enabled or be explicitly selected as the render camera.
3. The camera must not be hidden (visibility set to on, not off).
4. The camera transform and shape nodes must both be valid (not corrupted or orphaned).
5. The camera namespace (if used) must not conflict with Arnold's namespace detection.

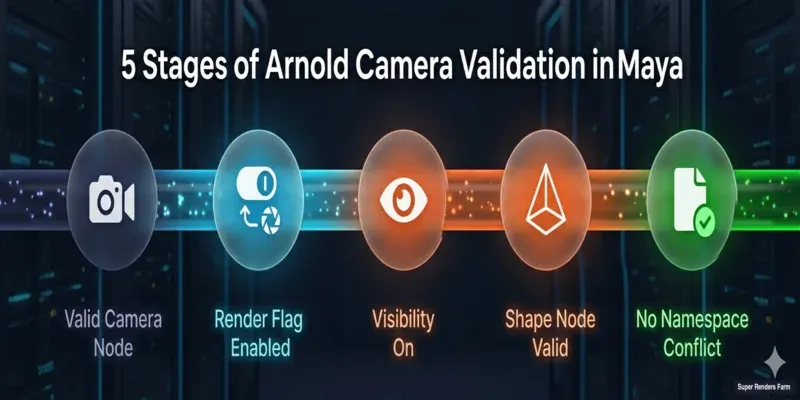

Arnold camera validation checklist showing five criteria: valid camera node, render flag enabled, visibility on, shape node valid, no namespace conflict

When Arnold scans the scene for renderable cameras, it checks these properties. If a camera doesn't meet these criteria, Arnold silently excludes it from the RenderView dropdown and batch render lists. This is why you might see the viewport camera but nothing in RenderView.

Solution 1: Enable the Render Flag on Your Camera

The most common cause: your custom camera exists, but its render flag is disabled.

In the Maya Outliner:

1. Open the Outliner (Windows > Outliner).
2. Find your custom camera in the list (e.g., camera_01).
3. Right-click it and select Attributes.
4. In the Attribute Editor, look for the Visibility section.
5. Ensure Visibility is set to on (checked).
6. Scroll down to the Output Settings section (you may need to expand it).
7. Ensure Renderable is checked (enabled).

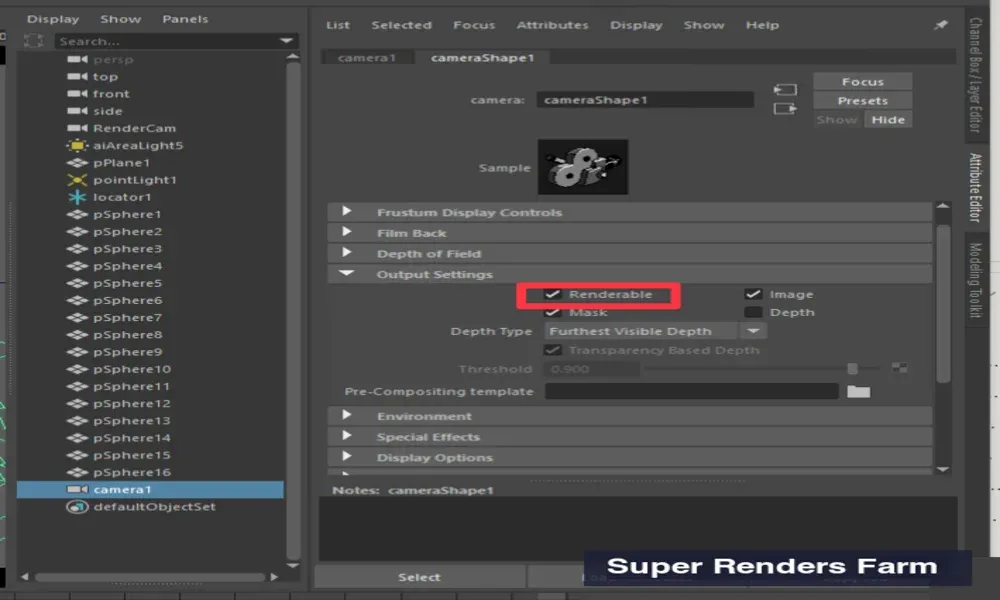

Maya Attribute Editor showing camera Output Settings section with the Renderable checkbox that must be enabled for Arnold

If Renderable is unchecked, click it to enable it. This tells Arnold the camera is available for rendering.

Via Command Line:

You can enable render flags from the MEL command line:

setAttr "camera_01Shape.renderable" 1;

(Replace camera_01 with your actual camera name.)

Solution 2: Set the Camera as the Render Camera

Even with the render flag enabled, Arnold may not include the camera if it's not marked as the active render camera.

In the Render Settings:

1. Open Render Settings (Render > Render Settings or press F10).
2. In the Common tab, find the Camera dropdown under Render Using.
3. Select your custom camera from the dropdown (e.g., camera_01).
4. Close the Render Settings window.
5. Open Arnold RenderView. Your camera should now appear in the camera dropdown.

If the dropdown is empty or doesn't show your camera:

This indicates a more serious issue—the camera isn't being recognized by Maya at all. Proceed to Solution 3.

Solution 3: Verify the Camera is a Valid Camera Node

Sometimes a camera gets corrupted or is created incorrectly, and Maya doesn't recognize it as a proper camera. You can verify this in the Outliner.

In the Outliner:

1. Open Windows > Outliner.
2. Look at the icon next to your camera name:
   • A camera icon (small film camera) = valid camera node.
   • A group icon or node icon = not a proper camera (corrupted or misidentified).

If it's not showing a camera icon, the node is corrupted. Delete it and create a new camera using Render > Create/Edit Cameras > Camera.

Check for Namespace Conflicts:

If you're using referenced files or namespaces, ensure your camera isn't nested under an incorrect namespace that Arnold can't access.

1. In the Outliner, check if your camera has a namespace prefix (e.g., namespace:camera_01).
2. If it does, and you didn't intend it, right-click the camera and select Edit > Remove Namespace (if available) or delete and recreate it in the default namespace.

Solution 4: Check Camera Shape Node Visibility

In Maya, cameras have both a transform node (the parent) and a shape node (the actual camera geometry). Arnold needs both to be visible and valid. If the shape node is hidden or orphaned, the camera won't render.

In the Outliner (with Shapes Visible):

1. Open Outliner and ensure Display > Shapes is checked (so you see shape nodes).
2. Expand your camera's transform node. You should see a [camera]Shape node underneath.
3. If there's no shape node, the camera is corrupted. Delete and recreate it.
4. If the shape node exists, right-click it and select Attributes.
5. In the Attribute Editor, check Visibility and Intermediate Object:
   • Visibility should be on.
   • Intermediate Object should be off (unchecked). If it's on, the camera is treated as an intermediate construction object and Arnold will ignore it.

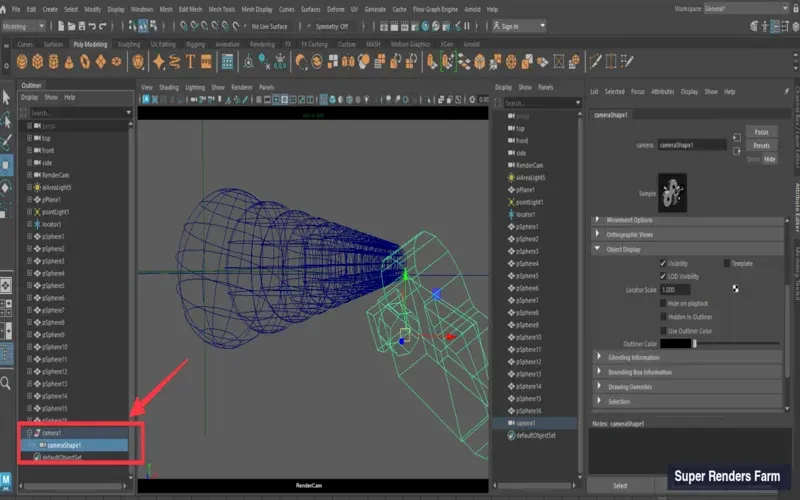

Maya Outliner showing camera transform and shape node hierarchy with cameraShape1 visible under camera1

Fix via MEL:

setAttr "camera_01Shape.visibility" 1;
setAttr "camera_01Shape.intermediateObject" 0;

Solution 5: Delete and Recreate the Problematic Camera

If a camera is behaving strangely (hidden from RenderView, not responding to attribute changes, or orphaned), the safest fix is to delete it and create a new one.

Steps:

1. In the Outliner, select your problematic camera (the transform node, not the shape).
2. Press Delete (or right-click and select Delete).
3. Go to Render > Create/Edit Cameras > Camera.
4. A new default camera will be created (usually named camera2 or camera3).
5. Position it where needed (or copy position data from the old camera if you saved it).
6. Set it as the render camera (see Solution 2).
7. Open Arnold RenderView. It should now appear in the camera dropdown.

This is often faster than debugging a corrupted camera.

Solution 6: Batch Render Camera Selection

If you're submitting batch renders to our farm, the farm's render submission tool needs to find and identify the camera from Maya. This is different from interactive RenderView.

In Batch Render Settings:

1. Open Render > Batch Render.
2. In the dialog that opens, find the Camera dropdown.
3. Select your custom camera (don't leave it set to "Render Settings Default").
4. Ensure Renderable Cameras Only is checked (if this option is available in your Maya version).
5. Click Render to test locally, or proceed to farm submission if local rendering works.

For Farm Submission:

When you package your Maya scene for Super Renders Farm, ensure:

• The camera is properly set as the render camera in Render Settings.
• The camera's render flag is enabled.
• You're not using custom namespace prefixes that might confuse the farm's submission parser.

If the farm reports "Camera not found," check your local Render Settings first to verify the camera is set there. The farm uses your Render Settings to identify which camera to render.

Solution 7: Check Camera Attributes After Arnold Updates

If you've recently updated Arnold (MtoA), camera visibility behavior may have changed between versions. Newer Arnold releases can be stricter about which cameras appear in the RenderView dropdown.

Attributes to verify after any Arnold update:

1. Verify all cameras have standard near and far clip plane values (e.g., near: 0.01, far: 1000).

   • To check: Select the camera, open the Attribute Editor, and look for Near Clip Plane and Far Clip Plane under the Camera section.
   • If either is 0 or extremely large, reset them to defaults: 0.01 and 1000.

2. Ensure Film Back and Aperture values are within normal ranges:

   • Film Back Width and Height should be around 36 and 24 (35mm equivalent).
   • If they're 0 or negative, reset to standard 35mm: width 36, height 24.

3. After adjusting these values, close and reopen Arnold RenderView. The camera should appear.

FAQ

Q: My camera appears in Maya's viewport and Render Settings, but not in Arnold RenderView. Why? A: Arnold has stricter camera validation than Maya's viewport renderer. Check that the camera's render flag is enabled (Solution 1) and the shape node visibility is on (Solution 4). If those are correct, the shape node may be corrupted (delete and recreate—Solution 5).

Q: I have multiple cameras in my scene. Will they all show in Arnold RenderView? A: Only cameras with the render flag enabled will appear. If a camera is renderable but hidden from the RenderView dropdown, check its visibility attributes (Solution 4). To hide a camera from the dropdown without deleting it, uncheck its render flag.

Q: Can I use a camera from a referenced file? A: Yes, but ensure the reference file is loaded and the camera isn't in a locked or hidden namespace. If the referenced camera doesn't appear, reload the reference and check the Outliner for namespace issues (Solution 3).

Q: I'm submitting to the farm and getting "camera not found" error. What's wrong? A: The farm's submission tool is reading your Render Settings. Check that your camera is explicitly set in Render Settings (Render > Render Settings > Common > Camera). Don't leave it on "Render Settings Default" for farm submissions; select the actual camera name.

Q: Does Arnold work with non-standard camera types (like fisheye or spherical)? A: Arnold supports custom camera types via plugins, but only if the plugin is installed on both your machine and the farm. For farm submissions, use standard perspective cameras if possible. If you must use a custom camera type, contact the farm to ensure the plugin is installed on their render nodes.

Q: What if I'm using a locked camera (locked transform)? A: A locked camera can still render, but it can't be repositioned. If you need to adjust the camera, unlock it first by selecting it, going to Modify > Freeze Transformations, then unlock the transform. For farm submissions, locked or frozen cameras are fine.

Q: Can I have a camera that's hidden in the viewport but renderable in Arnold? A: Yes. In the Outliner, right-click the camera transform and select Hide (or press Ctrl+H). This hides it visually but doesn't affect rendering. To show it again, right-click and select Show. The render flag and visibility in the Attribute Editor control rendering, not viewport visibility.
