Complete Guide to City Traffic Plugin for 3ds Max

Urban visualization has evolved far beyond static architectural renders. Modern city scenes often require dynamic environments where vehicles move naturally through streets, intersections, and highways. This is where traffic simulation tools become essential.

Among the available solutions for Autodesk 3ds Max, the City Traffic plugin stands out as one of the most practical systems for creating large-scale traffic animations. It allows artists to populate urban scenes with hundreds or even thousands of vehicles while maintaining believable behavior and efficient workflows.

This guide explains how City Traffic works, its core features, and how professionals optimize large traffic simulations for rendering pipelines.

When working with large traffic simulations in architectural renders, scene optimization becomes critical. See our guide on optimizing performance in large 3ds Max scenes for strategies that keep viewport responsiveness while managing thousands of animated vehicles.

Introduction to the City Traffic Plugin

City Traffic is a specialized traffic simulation plugin for 3ds Max developed by the iCube R&D Group. It automates the process of generating realistic vehicle motion across complex road networks.

Instead of manually animating cars one by one, artists can define road systems, assign vehicle models, and let the simulation handle vehicle movement automatically.

City Traffic urban traffic simulation overview

The plugin is widely used in several industries:

• Architectural visualization (archviz)
• Urban planning presentations
• City flythrough animations
• Transportation concept visualization
• Large cinematic environments

In traditional workflows, animating vehicle motion required complex rigging setups and manual keyframe animation. City Traffic replaces this process with an AI-driven system capable of handling:

• vehicle navigation
• lane management
• intersection behavior
• suspension dynamics

This allows artists to focus on scene composition and storytelling, rather than technical animation tasks.

How Traffic Simulation Works in 3ds Max

Traffic simulation systems in 3D software typically rely on spline-based road networks combined with behavioral logic for vehicles.

In City Traffic, roads are defined using splines that represent the centerline of the street. The plugin then converts those splines into multi-lane traffic systems where vehicles can travel in both directions.

Spline-based road system used for traffic simulation

Each road segment can contain several parameters:

• number of lanes
• lane width
• traffic direction
• speed limits
• intersection behavior

Vehicles in the system act as autonomous agents. Each car follows the road network while responding dynamically to its surroundings.

Typical behaviors include:

• maintaining safe distance from other vehicles
• slowing down near intersections
• responding to traffic signals
• switching lanes when needed

This agent-based approach allows hundreds of vehicles to move simultaneously without manual animation.

Key Features of the City Traffic Plugin

City Traffic includes a collection of tools designed specifically for building large traffic environments inside 3ds Max.

Road and Lane System

The plugin uses the CityTraffic Road (WSM) modifier to convert splines into drivable roads.

Artists can control several important parameters:

• number of lanes per direction
• lane width
• traffic speed limits
• road offset and alignment

This makes it possible to create anything from narrow residential streets to multi-lane highways.

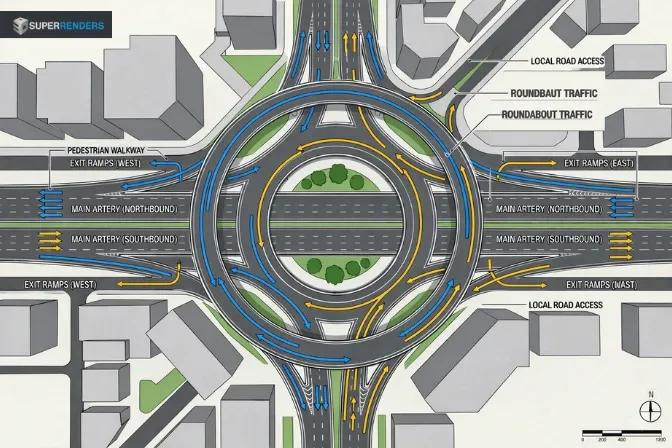

Lane configuration in a City Traffic road system

Automatic Intersections

Intersections are handled using the CityTraffic Cross (WSM) modifier, which automatically manages how vehicles navigate crossing roads.

The system determines:

• allowed turning directions
• traffic flow priority
• intersection movement rules

Vehicles approaching an intersection will evaluate available paths and choose the correct direction based on the road network.

Traffic Signals and Road Helpers

City Traffic also includes several helper objects used to control traffic behavior.

Examples include:

• Stop lines – define where vehicles stop at intersections
• Bus stops – allow buses to pull aside and pause
• Parking areas – simulate parked vehicles
• Speed limit zones – slow traffic in specific areas
• Obstacle helpers – force vehicles to avoid objects

Traffic lights and intersection control system

These helpers make it possible to simulate more realistic city traffic patterns.

Vehicle Rigging and Suspension

Preparing a vehicle for simulation requires a simple structure:

• one body object
• four or six wheel objects

Once the vehicle is assigned to City Traffic, the plugin automatically generates a rig that controls:

• steering
• wheel rotation
• suspension movement
• acceleration and braking behavior

This automatic rigging system is one of the main reasons the plugin is popular among archviz artists.

Basic Workflow for Creating Traffic Animation

Although the system is powerful, the overall workflow remains straightforward.

Most production pipelines follow four main stages.

Creating the Road Network

The process begins by drawing splines that represent road centerlines.

These splines should match the terrain and city layout. Clean spline topology is important to avoid navigation errors during simulation.

Configuring Traffic Systems

Next, artists apply the CityTraffic Road modifier to each spline and configure parameters such as:

• lane direction
• number of lanes
• speed limits

Intersections are created by applying the Cross modifier where roads intersect.

Preparing Vehicle Assets

Vehicle models must be prepared before they can join the simulation.

Typical requirements include:

• correct orientation (Y-axis forward)
• properly positioned wheels
• consistent scale

Once rigged, vehicles can be cloned and distributed throughout the traffic system.

Running the Simulation

Finally, the Trace function calculates the traffic behavior across the road network.

Artists often add a short pre-roll simulation before the animation begins so vehicles distribute naturally across the scene.

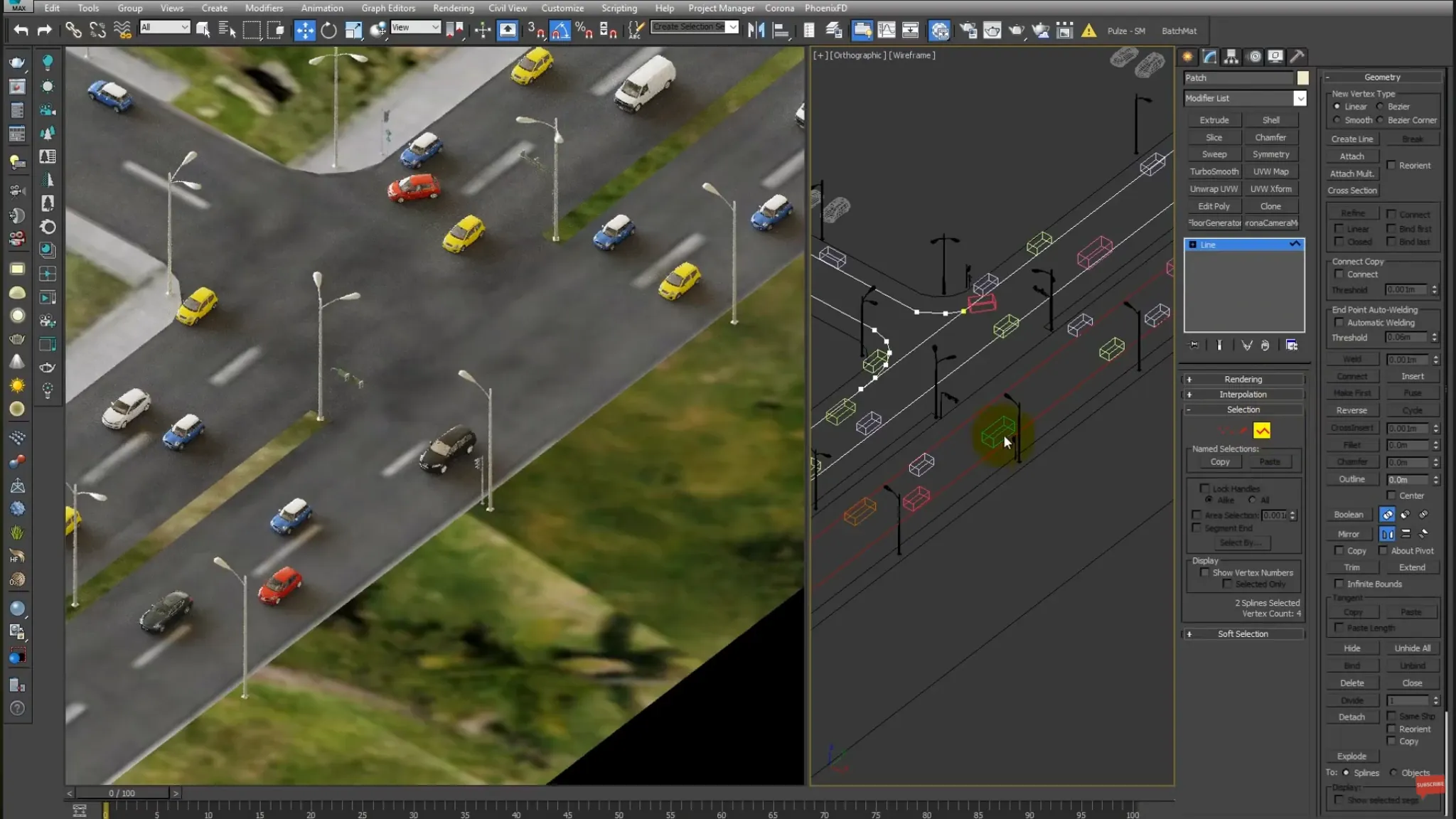

Large-scale urban traffic simulation example

The result is a dynamic traffic environment that evolves automatically over time.

City Traffic vs Other Traffic Tools in 3ds Max

City Traffic is sometimes compared with other built-in systems available in 3ds Max.

The most common comparison is Civil View.

Civil View focuses primarily on civil engineering visualization. It is designed to import infrastructure data from Autodesk Civil 3D.

City Traffic, by contrast, is focused on animation and visual storytelling.

Key differences include:

Because of this difference, City Traffic is generally preferred for creative urban animations and cinematic flythroughs.

Optimizing Heavy Traffic Scenes

Large traffic simulations can quickly become extremely demanding on system resources.

A single high-detail car model may contain hundreds of thousands of polygons. When thousands of vehicles appear in a scene, geometry counts can become enormous.

Common performance issues include:

• viewport slowdown
• high memory usage
• unstable simulations
• extremely long render times

Professional artists use several strategies to maintain stability.

Proxy Objects

One of the most effective solutions is using render proxies.

Proxy objects replace high-resolution geometry with lightweight placeholders in the viewport. The full geometry is only loaded during rendering.

This significantly reduces memory usage and improves viewport performance.

Instancing Vehicles

Instancing allows multiple vehicles to share the same geometry data.

Instead of storing thousands of separate models in memory, 3ds Max references the same object repeatedly.

This technique substantially lowers RAM usage in heavy scenes.

Level of Detail (LOD)

Studios also implement Level of Detail systems.

Vehicles closer to the camera use high-resolution models, while distant cars are replaced with simplified versions.

This ensures efficient rendering without sacrificing visual realism.

Rendering Traffic Animations Efficiently

Rendering city traffic scenes introduces additional challenges because every frame may contain hundreds of moving objects.

Two render engines are commonly used in archviz workflows:

• V-Ray
• Corona Renderer

Both engines support animation rendering and can handle complex scenes with the proper settings.

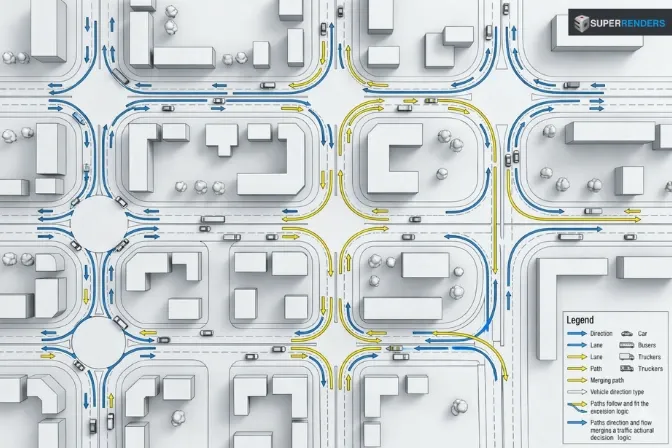

City traffic simulation diagram showing vehicle paths and traffic flow logic in an urban grid

Key considerations when rendering traffic animations include:

• stable global illumination
• motion blur for moving vehicles
• noise reduction
• efficient sampling settings

Many artists pre-calculate GI caches or use animation modes to avoid flickering between frames.

Using Render Farms for Traffic Animation

Traffic animations can involve thousands of frames, especially when creating city flythrough videos or urban presentations.

Rendering such sequences on a single workstation can take days or even weeks.

This is why professional studios often rely on render farms to handle the computational load efficiently.

A render farm distributes frames across many computers simultaneously. Each machine renders a portion of the animation, significantly reducing total render time.

Typical render farm workflows include:

1. collecting all scene assets
2. verifying plugin compatibility
3. converting simulations to cached data
4. submitting frames to distributed nodes

For example, a 1,000-frame animation that would take two weeks on a single computer could finish in only a few hours using a large render farm.

Services like Super Renders Farm are designed specifically for heavy 3ds Max scenes, allowing artists to render complex traffic animations much faster while maintaining full compatibility with major render engines. Proper scene optimization and asset collection are essential before submission.

FAQ: City Traffic Plugin Optimization

Q: How should I optimize my City Traffic scene before farm rendering?

A: Bake all traffic animation to keyframes, export unnecessary geometry as separate files, collapse modifier stacks on static objects, and organize all assets (textures, maps, references) into a single project folder using UNC paths. Remove all simulation helpers before submission.

Q: Can I use City Traffic with V-Ray Proxy objects?

A: Yes. You can use V-Ray proxies for vehicle replacement during rendering. Simulate and bake with lower-resolution models, then use proxy nodes to swap in high-resolution geometry at render time. This significantly speeds up viewport work and file size.

Q: What's the optimal traffic density for archviz animations?

A: Density depends on road type. Highway scenes typically use 8-15 vehicles per 100 units of road length. Urban streets work well at 5-10 vehicles per 100 units. Too high density (20+) creates unrealistic congestion and slows simulation. Always test with your specific scene scale.

Q: Should I pre-roll my simulation before the actual animation sequence?

A: Yes. A 5-10 second pre-roll allows vehicles to distribute naturally before your camera animation begins. Without pre-roll, traffic often starts in unnatural configurations. Disable pre-roll rendering and only render frames after vehicles have settled.

Q: How do I handle lane changes and complex intersections?

A: Use the Cross modifier at intersections with proper turning configurations. For lane changes, ensure roads have adequate width and your vehicle speed settings allow smooth transitions. Test simulation behavior at reduced speed first to debug problematic areas.

Q: What file format works best for exporting City Traffic scenes to other software?

A: FBX is the standard format. Use Bake Animation during export to convert City Traffic keyframes into standard animation data. Corona and V-Ray can render the FBX directly, or you can use it in game engines like Unreal or Unity for real-time visualization.
