10 Tricks for Better Houdini FLIP Fluid Simulations

10 Tricks for Better Houdini FLIP Fluid Simulations

BySuperRenders Farm Team
Published Mar 16, 202611 min read
Practical tricks from production FX artists for faster, more controllable FLIP fluid simulations in Houdini.

Houdini provides a powerful set of tools when it comes to simulating fluids. However, it's always a challenge to make fluids look realistic, especially for broadcast work.

In this article, let's explore some hacks from FuseFX artist Kevin Pinga to create faster, more flexible FLIP fluid simulations. We've also integrated operational insights from our farm about how these workflows perform at scale when rendering complex fluid sequences.

For studios looking to offload heavy Houdini simulations and rendering to the cloud, our Houdini render farm comparison for 2026 covers engine support, HDA compatibility, and pricing across the major providers.

FLIP simulations are one side of Houdini's simulation toolkit. For a comparison of Houdini's broader simulation capabilities against specialized character FX tools, our Ziva VFX vs Houdini simulation comparison examines the trade-offs for muscle, tissue, and soft-body workflows.

Source fluids with POP Source, not FLIP Source

Sourcing fluids with POP Source provides familiar emission, activation and velocity attributes

Sourcing fluids with POP Source provides familiar emission, activation and velocity attributes

The default method to source fluid for FLIP is to use a FLIP Source node. It will create a VDB which is read in by the Volume Source node in DOPs. This approach works fine when sourcing from a large ambiguous shape; however, it can get quite resource-heavy and time-consuming before you even get to the simulation phase.

Instead, you should use regular polygon-based SOP geometry directly with no conversion to VDBs. This source can be read in by the POP Source node wired into the Sourcing input of the FLIP solver itself, in the same way that you would import a source for a regular particle simulation.

This method is more intuitive since you have familiar controls on the POP Source node through your experience working with regular particles. You can control and monitor particles easily and independently of the Particle Separation of the FLIP object itself.

Use POP nodes with FLIP fluids

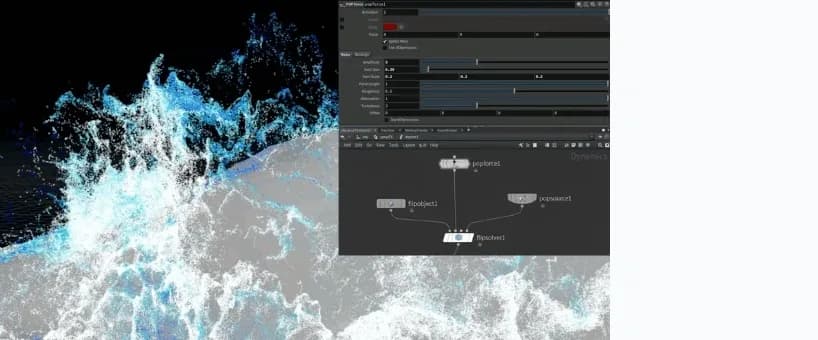

Houdini interface showing a POP Force node added to a FLIP simulation to create detailed fluid motion and noise

Houdini interface showing a POP Force node added to a FLIP simulation to create detailed fluid motion and noise

FLIP is essentially a series of POPs with some volumetric advection steps in between. However, the base itself is just particles, which means that all the POP nodes in DOPs can be used for FLIP fluids. This is why you were able to source using the POP Source node in the previous tip.

The POP Force node is a staple for creating interesting motion when working with regular particles. You can use it with FLIP fluids too. Using it to introduce even a small amount of noise can create a more appealing-looking fluid. Low-frequency noises can also create detail without having to increase your particle count or particle separation. (Be careful not to add too much noise, as this can cause unrealistic simulation.)

Another POP node that is useful in FLIP simulations is POP Speed Limit. Coupled with a POP Drag node, it works great for controlling high-velocity particles that can otherwise go out of control.

Use Bounds qL to set your FLIP limits

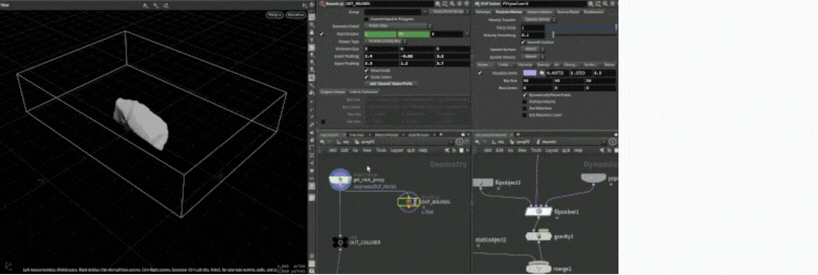

Referencing the parameters in Bounds qL helps to set simulation limits

Referencing the parameters in Bounds qL helps to set simulation limits

The Bounds qL node is a very useful tool that packs in many simple features. It comes as part of a larger open-source Houdini toolset called qLib. In most studios, qLib is installed by default. If it's not in your personal production environment, you can install it yourself by following the instructions on GitHub.

Kevin Pinga shares that he uses Bounds qL primarily for setting his volume limits for FLIP and Pyro simulations. This is a step up from the standard Bound node as it includes an option to create bounds based on an animated input.

The most useful feature is the Output: Values checkbox, which unlocks the values of the size and center of the bounding box. These values can then be copied to any parameter in the FLIP solver's Volume Limits tab, or any other operations that require a bounding box. Having centralized bounding box info can avoid user error and helps in creating more procedural setups.

Enable useful attributes in the FLIP solver

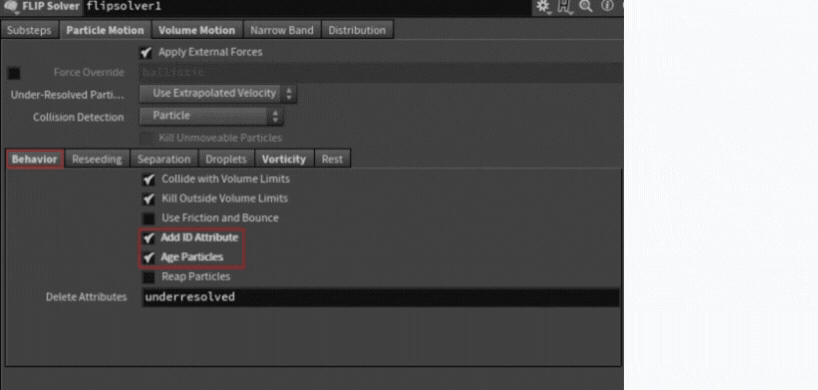

Enabling extra FLIP attributes: like many things in Houdini, the fix is only a few checkboxes away

Enabling extra FLIP attributes: like many things in Houdini, the fix is only a few checkboxes away

There are three main parameters on the FLIP solver which you should turn on in your FLIP sims: ID, age and vorticity. They can be found in the FLIP Solver under the Behavior and Vorticity tabs.

Most artists are already familiar with the ID attribute and how powerful it can be. Your data size might take a small hit for caching an additional attribute, but it's always a good idea to have that information available.

You can control how a sim looks over time by enabling the age attribute via the Age Particles checkbox (which also exports the life attribute). This is useful especially if you have a source that is constantly emitting.

The vorticity attribute is handy for sourcing secondary simulations like whitewater and is great for manipulating shading.

Do post-simulation tweaks to salvage failing sims

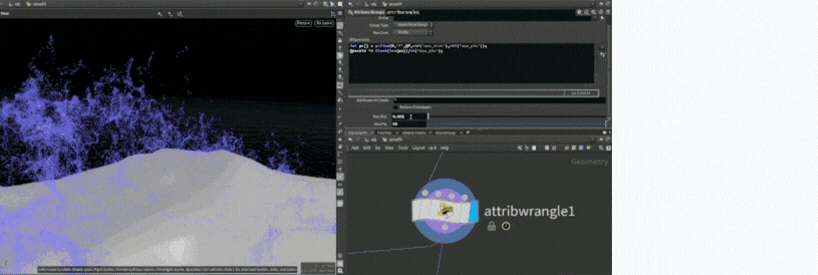

A simple VEX wrangle to adjust particle size based on the density of the point cloud

A simple VEX wrangle to adjust particle size based on the density of the point cloud

There is a tendency to rely heavily on the output of a FLIP simulation as a final result. While this is an ideal workflow, due to time constraints, you don't always have the luxury of resimulating to fix problems. In cases like these, running post-simulation tweaks on the FLIP particles themselves can help salvage the sim.

You should also add the ID attribute so that you can use the Retime node to retime a sim.

Pinga notes that he encounters another common problem when running mid-res simulations: the size of the liquid droplets is good in high-density areas of the simulation, but too big in sparser areas. In cases like this, a simple wrangle using the pcfind function can help mark sparse areas and lower their pscale value.

Below is the code snippet used in the wrangle:

int pc[] = pcfind(0,'P',@P,chf('max_dist'),chi('max_pts'));
@pscale *= float(len(pc))/ch('max_pts');

Use xyzdist to handle high-resolution collision surfaces

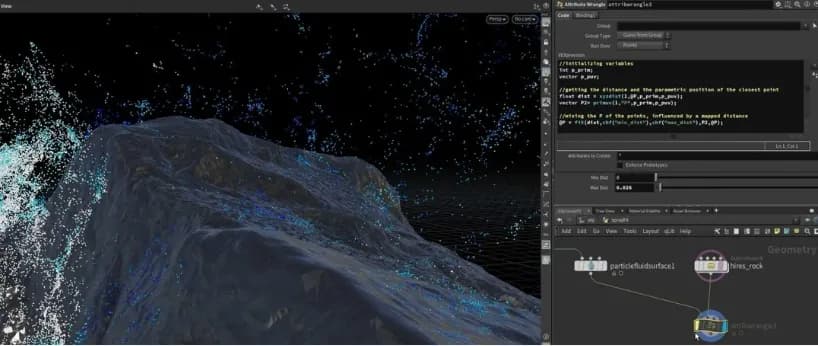

Using xyzdist() and primuv() to push particles towards the collision surface

Using xyzdist() and primuv() to push particles towards the collision surface

This is another post-simulation tweak. Together with primuv(), xyzdist() is by far the most useful function for collision refinement.

In a VEX or VOPs context, xyzdist() calculates the distance to the closest interpolated point on a surface. When combined with primuv(), you can extract any attribute from the parametric UVs of the object.

In the example above, you extract the position of the high-resolution collision surface and use it to push particles towards the surface. In some cases, you can also run this directly on the meshed surface itself, especially in shots where the collision surface is see-through (for example, pouring liquid into a clear glass). Clamping the distance to a really small value will help you speed up calculations.

Here's the code snippet used in the wrangle:

//initializing variables
int p_prim;
vector p_puv;
//getting the distance and the parametric position of the closest point
float dist = xyzdist(1,@P,p_prim,p_puv);
vector P2= primuv(1,"P",p_prim,p_puv);
//mixing the P of the points, influenced by a mapped distance
@P = fit(dist,chf("min_dist"),chf("max_dist"),P2,@P);

In production, there is a more practical usage. You use a lower-resolution collider during simulation, and then run this function in a post-simulation wrangle to make the fluid look like it's interacting with a high-res collider. This approach saves significant simulation time while maintaining visual fidelity.

Kill problematic particles with ID

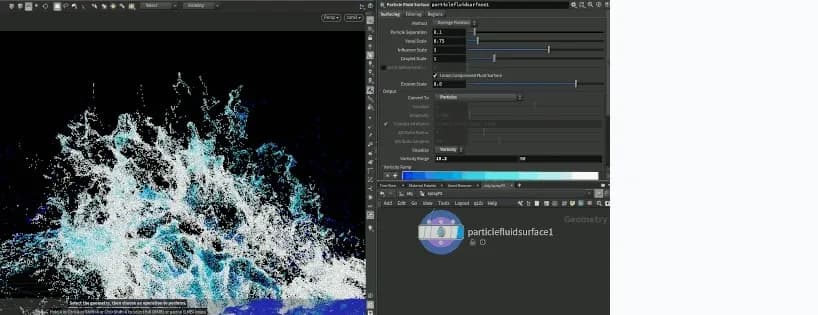

A simple method to correctly blast away problematic particles via ID attributes

A simple method to correctly blast away problematic particles via ID attributes

This is a simple yet effective trick when you have a simulation that is 98% close to being final, but where the remaining 2% of particles are just not working. If you stored the ID attribute mentioned in the previous tips, you can use it to blast away the problem particles. Without ID, you wouldn't be able to mark the correct particles for deletion as the point count changes from frame to frame.

You can troubleshoot this by going into point selection mode and hit [9] on your numpad. This brings up the Group Selection pane. To select by ID, click on the gear icon and select Attributes > id. Now you can simply select the particles you want to remove in the viewport and hit [Delete]. A Blast node will be generated automatically referencing the point ID instead of the point number.

Use reseeding to beef up sparse regions

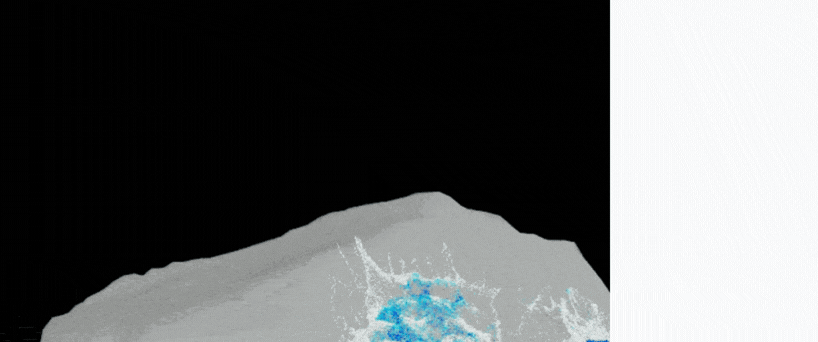

Turn up surface oversampling to fill sparse areas of a simulation

Turn up surface oversampling to fill sparse areas of a simulation

In production, sometimes you will encounter a problem where the final render does not look correct because it doesn't have enough particles. This is due to using a mid-resolution FLIP sim.

In cases like this, you should turn up the reseeding parameters instead of changing your particle separation. By default, reseeding is already turned on, but cranking up the Surface Oversampling parameter can help increase particle count in sparse areas by spreading out the particles. This way, you get to keep the general look of your simulation but have enough particles to avoid the meshed fluid looking incorrect.

Use the original FLIP sim directly as a different element

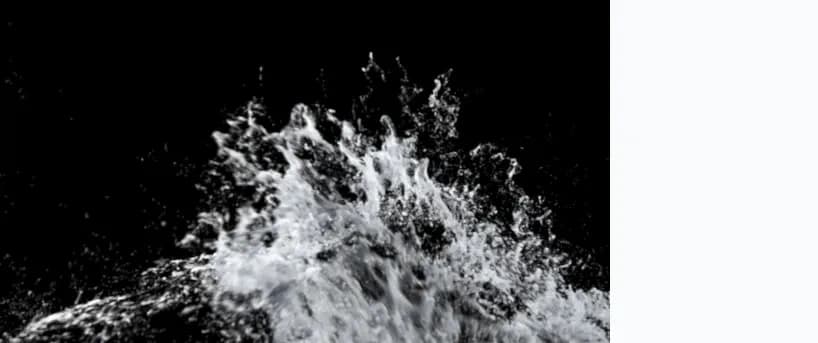

Rendering the original FLIP sim directly as whitewater

Rendering the original FLIP sim directly as whitewater

The traditional way to create whitewater is to simulate the FLIP fluid, then run the Whitewater solver on top of that. However, the second step isn't always necessary, particularly for fast-moving fluids like splashes and water jets (think a broken fire hydrant or underwater in a hot tub). In addition, it can be quite tricky to get the fluid to look right when meshing the particles.

However, you can take the FLIP sim itself and render it directly with a whitewater shader. You can either render the particles themselves, or rasterize them to a VDB and render the result as a volume.

Optimise the sim and caches

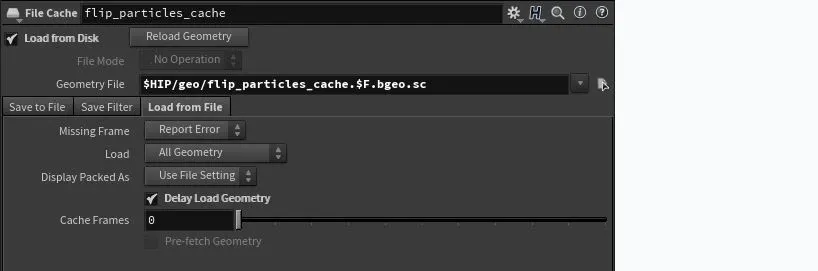

Use the Delay Load Geometry checkbox in the File Cache node to speed up work on high-res sims

Use the Delay Load Geometry checkbox in the File Cache node to speed up work on high-res sims

One of the challenges with high-resolution FLIP sims is dealing with the large amounts of data they generate. A common practice is to delete all the attributes that you don't need before caching any part of a simulation.

Another thing that you can do to help reduce your memory footprint is to cull the particles outside the camera's frustum. Additionally, if you have geometry that is ready to be rendered, it is a good idea to cache it out and have the Delay Load Geometry checkbox turned on. Instead of having Mantra embed the geometry in the IFD file, it will be referenced to the file on disk instead. This will help reduce load times and also drastically reduce both IFD generation times and file size.

When rendering large FLIP simulations across distributed infrastructure, these caching strategies become critical. We've worked with studios rendering weeks of FLIP animation, and proper cache optimization typically reduces transfer time and total render time by 30-40%.

FAQ: Houdini FLIP on Render Farms

Q: Can I render Houdini FLIP simulations on a cloud render farm?

A: Yes. FLIP simulations export as geometry caches or VDB sequences. You'll need to ensure all cache files, textures, and referenced geometry are accessible from the render farm. Houdini on render farms typically loads pre-calculated simulation data rather than running the simulation itself during rendering.

Q: What format should I cache my FLIP sim in before farm rendering?

A: VDB (OpenVDB) sequences are ideal for render farm distribution—they compress well and load quickly across network access. Alternatively, export as Alembic (.abc) sequences if you need to preserve topology for deformation shading.

Q: How much disk space does a typical FLIP cache take up?

A: This varies widely. A 10-second high-res FLIP sim can easily be 10-50 GB depending on particle count and cache frequency. Always calculate expected cache size before submitting to a farm—many farms charge based on data transfer and storage.

Q: Will my FLIP simulation run identically when cached and rendered on different machines?

A: Yes, once cached, the simulation is locked. Rendering cached geometry produces identical results regardless of hardware. The important part is ensuring all texture paths and external references are farm-accessible.

Q: Do I need Houdini installed on render farm machines?

A: For rendering only, no. If you're using Mantra, you only need Houdini Apprentice or Houdini Engine. For rendering in V-Ray or other third-party engines, you don't need Houdini at all—just the geometry and texture files.

Q: What if my simulation references external collision objects or animated deforming geometry?

A: Bake all collisions into your cache during simulation. The farm will render the pre-simulated result. For truly dynamic setups (live deformation during render), you'll need to bake higher frequency caches or use procedural approaches.
